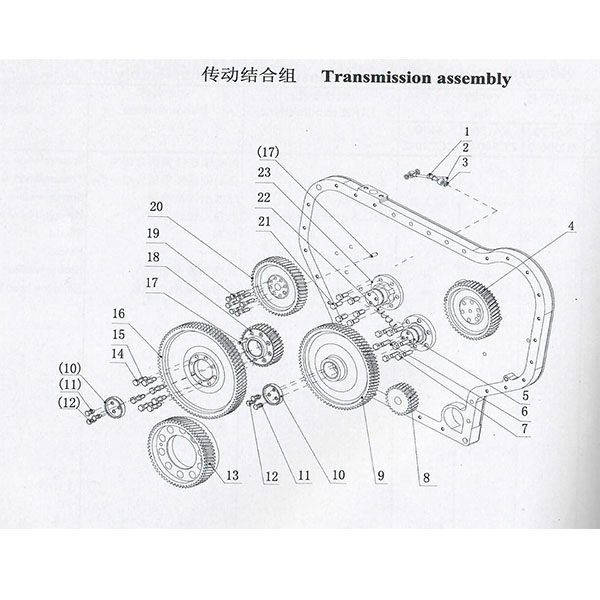

WEICHAI TRANSMISSION ASSEMBLY
We supply varieties of spare parts for WEICHAI series diesel engine.
Weichai Ricardo/Deutz/Steyr Engine Parts.
| Pos | Teile.number | Designation |
| 2 | 1707.15.140 | oil pipe sub-assy |
| 3 | 612600080201 | washer |
| 4 | 170Z.08.08C | gear |
| 5 | 170Z.08.15C | shaft |
| 6 | 90015050007 | parallel pin |
| 7 | 170Z.08.17 | bolt |
| 8 | 170Z.08.09C | gear |
| 9 | 170Z.08.10C | gear sub-assy |
| 10 | 170Z.08.14C | shield |
| 13 | 8170Z.08.01 | driving gear |
| 16 | 170Z.08.05C | gear |
| 20 | 170Z.08.04C | gear |
| 21 | 170Z.08.16 | bolt |
| 23 | 170Z.08.11C | shaft |
