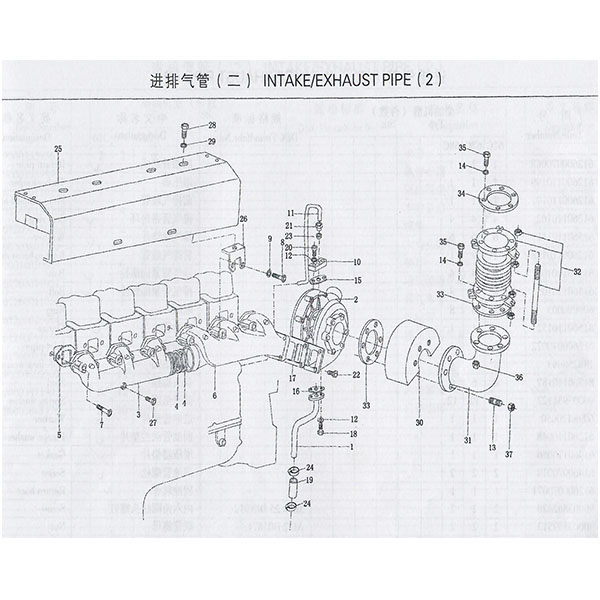

Pos | Teile.number | Designation |
1 | 612600070068 | return pipe |
2 | 612600110199 | turbocharger |
3 | 612600110197 | front exhaust manifold |
4 | 61260110162 | seal ring |
5 | 61560110111 | washer |
6 | 612600110198 | Rear exhaust mainfold |
7 | 61560110104 | bolt |
8 | 61560110105 | bolt |
10 | 81560110152 | flange |
11 | 612600070072 | inlet pipe |
15 | 609E110050 | washer |
16 | 61260110048 | flange washer |
17 | 61460110056 | gasket |
18 | 61460070014 | screw |
19 | 612600070071 | return hose |
30 | 612600110515 | isolating cover |
31 | 612600110514 | exhaust elbow |
32 | 612600110247 | pipe |
33 | 612600110513 | gasket |
34 | 612600110264 | flange |
