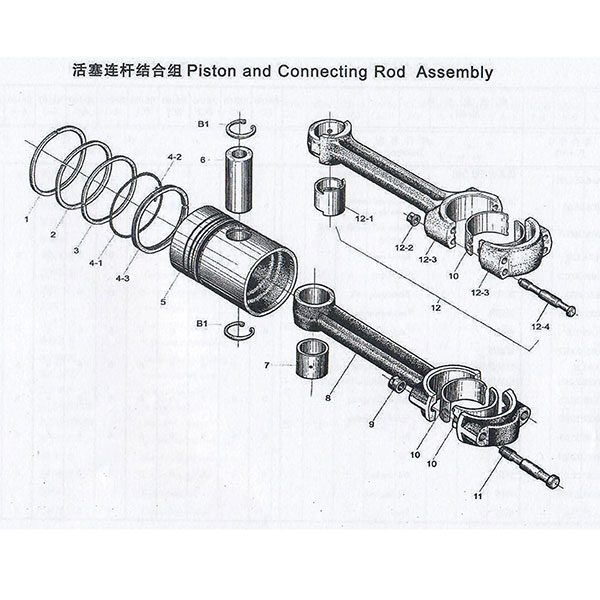

WEI CHAI PISTON AND CONNECTING ROD ASSEMBLY
We supply varieties of spare parts for WEICHAI series diesel engine.
Weichai Ricardo/Deutz/Steyr Engine Parts.
| 1 | 616005020012 | Barrel ring |
| 2 | 160A.05.02C | Rectangular ring |
| 2 | 161005020006 | Rectangular ring |
| 3 | 160A.05.02B | Conical ring |
| 3 | 616005020007 | Conical ring |
| 4-3 | 160A.05.20.01 | Oil ring body |
| 4-3 | 616005022001 | Oil ring body |
| 5 | 160A.05.23A | Piston |
| 5 | 160Z.05.27A | Piston |
| 5 | 616005020027 | Piston |
| 6 | 160Z.05.06A | Piston pin |
| 6 | 160Z.05.31 | Piston pin |
| 6 | 616005020031 | Piston pin |
| 7 | 160A.05.05 | Connecting rod bushing |
| 7 | 160Z.05.29 | Connecting rod bushing |
| 8 | 160A.05.13 | Connecting rod |
| 8 | 160A.05.28 | Connecting rod |
| 9 | 616005000021 | Connecting rod nut |
| 10 | 160A.05.14A | Connecting rod bearing |
| 10 | 160A.05.14 | Connecting rod bearing |
| 10 | 616005020004 | Connecting rod bearing |
| 11 | 616005000019 | Connecting rod bolt |
| 12-1 | 616005020005 | Connecting rod bushing |
| 12-3 | 616005020003 | Connecting rod |
| 12-4 | 616005020001 | Connecting rod bolt |
