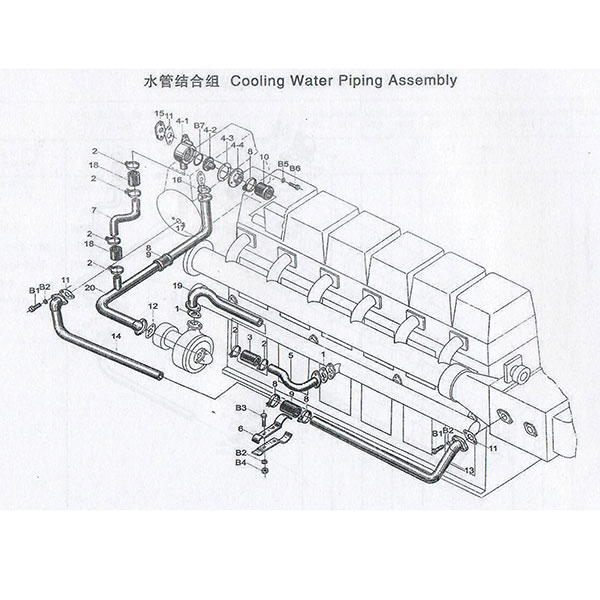

WEI CHAI COOLING WATER PIPING ASSEMBLY
We supply varieties of spare parts for WEICHAI series diesel engine.
Weichai Ricardo/Deutz/Steyr Engine Parts.
| Pos | Teile.number | Designation |
| 2 | 90003989306 | Clamp |
| 4 | 6160ZC7.54.610 | Thermostat sub-assy |
| 4 | 6160ZC5.54.610 | Thermostat sub-assy |
| 4-1 | 160Z.54.610.01 | Thermostat sub-assy |
| 4-1 | 160Z.54.610.03 | Thermostat |
| 4-2 | 170Z.20.60B.04 | Thermostat |
| 4-4 | 160Z.54.610.02 | Thermostat intake water assembly |
| 4-4 | 160Z.54.610.04 | Thermostat intake water assembly |
| 7 | 616054000001 | Small circulating water pipe sub-assy |
| 7 | 616054000003 | Small circulating water pipe sub-assy |
| 7 | 616054000005 | Small circulating water pipe sub-assy |
| 7 | 616054000006 | Small circulating water pipe sub-assy |
| 7 | 616054190001 | Small circulating water pipe sub-assy |
| 9 | 160A.54.42 | Hose connection |
| 10 | 160Z.54.85 | Rubber pipe |
| 10 | 160Z.54.91 | Rubber pipe |
| 13 | 160ZC7.54.580A | Water outlet pipe of intercooler sub-assy |
| 13 | 160ZC7.54.580 | Water outlet pipe of intercooler sub-assy |
| 14 | 616054005700 | Sea water inlet pipe of heat echanger |
| 14 | 616054015700 | Sea water inlet pipe of heat echanger |
| 17 | 616054005100 | Fresh water outlet oioe |
| 17 | 616054195100 | Fresh water outlet oioe |
| 18 | 160Z.54.86 | rubber pipe |
| 19 | 160ZC4.54.300 | Front intake water assembly |
| 20 | 615054005900 | Water inlet pipe of water pump sub-assy |
| 20 | 615054065900 | Water inlet pipe of water pump sub-assy |
| 20 | 616054195900 | Water inlet pipe of water pump sub-assy |
