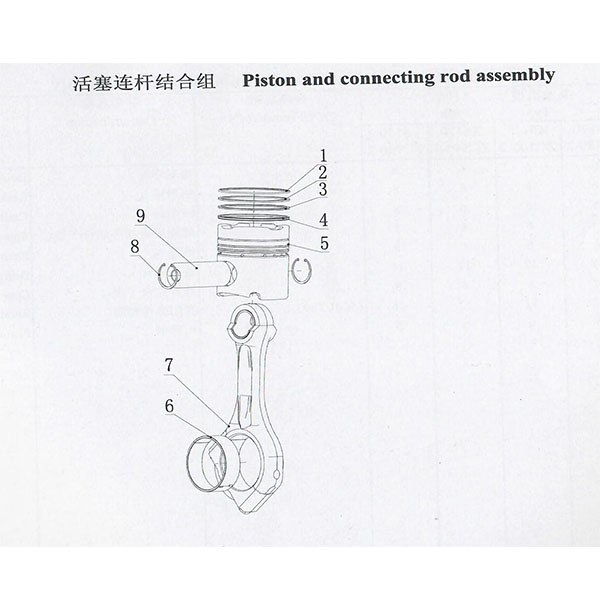

WEICHAI PISTON AND CONNECTING ROD ASSEMBLY
We supply varieties of spare parts for WEICHAI series diesel engine.
Weichai Ricardo/Deutz/Steyr Engine Parts.
| Pos | Teile.number | Designation |
| 1 | 170Z.05.02 | double ladderring |
| 2 | 170Z.05.12 | rectangular ring |
| 3 | 170Z.05.03 | conical ring |
| 4 | 170Z.05.10 | spiral sprins oil ring |
| 5 | 617005000022 | piston |
| 6 | 170Z.05.07 | bearing |
| 7 | 170Z.05.20 | connecting rod sub-assy |
| 8 | 90014570008 | retainer for hole |
| 9 | 170Z.05.04 | piston pin |
