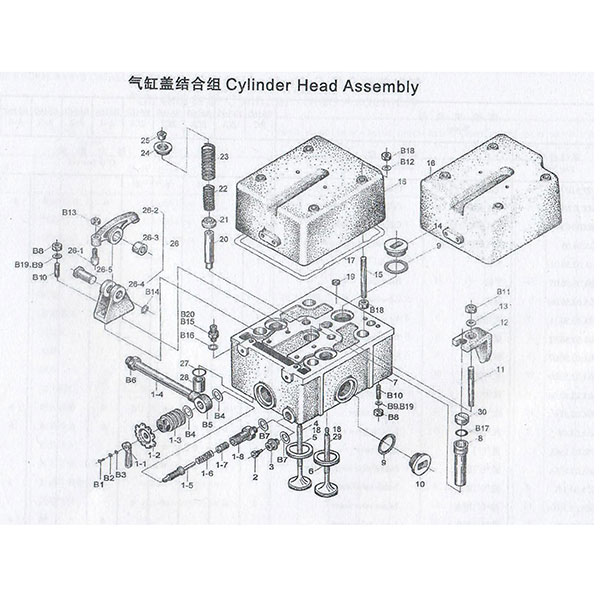

WEI CHAI CYLINDER HEAD ASSEMBLY
We supply varieties of spare parts for WEICHAI series diesel engine.
Weichai Ricardo/Deutz/Steyr Engine Parts.
| 616003120000 | Cylinder Head sub-assy | |
| 616003040000 | Cylinder Head sub-assy | |
| 1-2 | 160A.03.50.05 | Handwheel |
| 1-4 | 160A.03.50.11 | Air charging pipe |
| 1-7 | 160A.03.50.09 | Air charging pipe |
| 5 | 160Z.03.165A | Intake valve insert |
| 5 | 160Z.03.147 | Intake valve insert |
| 6 | 160Z.03.163A | Intake valve insert |
| 6 | 160Z.03.148 | Intake valve insert |
| 7 | 160A.03.45D | Cylinder Head |
| 7 | 160A.03.183A | Cylinder Head |
| 16 | 160A.03.144A | Cylinder Head cover |
| 16 | 160A.03.157B | Cylinder Head cover |
| 17 | 160Z.03.158 | Gasket of Cylinder cover |
| 17 | 160Z.03.146 | Gasket of Cylinder cover |
| 18 | 160A.03.27 | Air intake and exhaust hole |
| 26 | 160Z.03.20 | Rocker arm sub-assy |
| 26 | 160Z.03.10A | Rocker arm sub-assy |
| 26-4 | 160Z.03.10.05 | Rocker arm shaft bracket |
| 26-5 | 160Z.03.10.06 | Rocker arm shaft |
| 28 | 160A.03.143 | Valve guide |
| 29 | 160Z.03.162A | Exhaust valve |
| 29 | 616003030162 | Exhaust valve |
