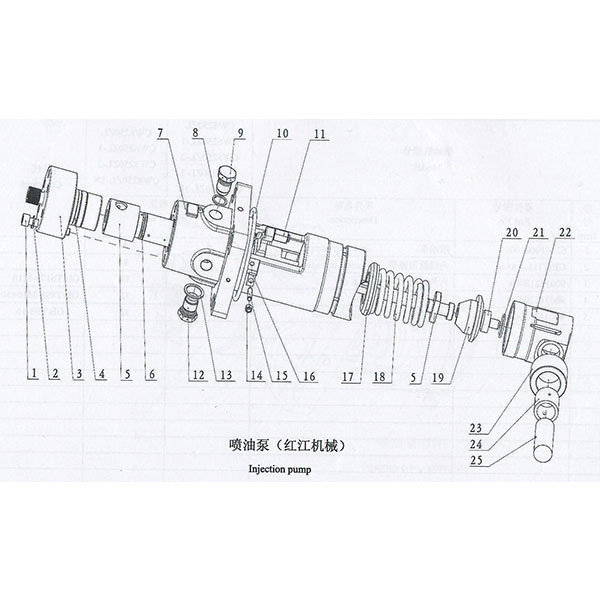

WEICHAI INJECTION PUMP
We supply varieties of spare parts for WEICHAI series diesel engine.
Weichai Ricardo/Deutz/Steyr Engine Parts.
| Pos | Teile.number | Designation |
| 1 | 500930043 | Socket head cap screw |
| 2 | 500320001 | Light type spring washer |
| 3 | 201000151 | Two way valve to fuel pump |
| 4 | 513000018 | O-ring |
| 5 | 201060050 | Pump element |
| 6 | 513000019 | O-ring |
| 7 | 201080043 | Pump body assembly |
| 8 | 100010063 | Washer |
| 9 | 100010050 | Stop screw |
| 10 | 513000044 | O-ring, |
| 11 | 201140015 | Regulating jacket assembly |
| 12 | 201120008 | Preservative screw |
| 13 | 100010064 | Washer |
| 14 | 501830004 | Hex nut,type 1 |
| 15 | 500990003 | Set screw |
| 16 | 500300001 | Tap washer with long tab |
| 17 | 200280048 | Upper spring seat |
| 18 | 120710077 | Injection pump spring |
| 19 | 200240049 | Lower spring seat |
| 20 | 100140013 | Pressure pin |
| 21 | 100190005 | Circlip |
| 22 | 201170016 | Guide piston |
| 23 | 201180007 | Roller |
| 24 | 201000005 | Roller bush |
| 25 | 201190006 | Roller pin |
