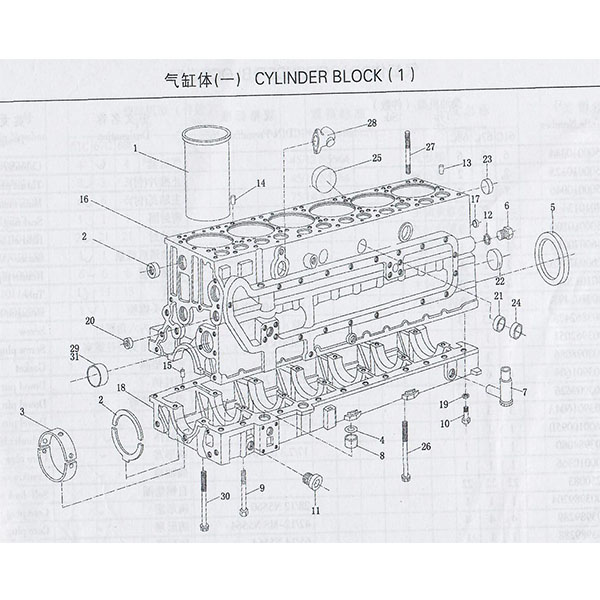

WEICHAI CYLINDER BLOCK
We supply varieties of spare parts for WEICHAI series diesel engine.
Weichai Ricardo/Deutz/Steyr Engine Parts.
| Pos | Teile.number | Designation |
| 1 | 61500010344 | cylinder uner |
| 2 | 81500010125 | thrust plate |
| 3 | 81500010046 | main bearing |
| 4 | 614010134 | seal ring |
| 5 | 61500010100 | real oil seal |
| 6 | 61460070011 | rear screw plug main oil passage |
| 7 | 612600070070 | return pipe |
| 8 | 614010120 | tube |
| 9 | 90003802493 | hexagon bolt |
| 16 | 61560010095B | cylinder block |
| 17 | 90003984080 | core plug |
| 18 | 61500010366 | crankcase |
| 20 | 900003989204 | core plug |
| 21 | 900003989289 | core plug |
| 22 | 900003989288 | core plug |
| 23 | 90003982121 | core plug |
| 24 | 90003989215 | core plug |
| 25 | 90003989210 | core plug |
| 26 | 614010217 | bearing bolt |
| 27 | 61500010185 | cylinder head nut |
| 28 | 612600010150 | elbow pipe |
| 29 | 61560010029 | camshaft bushing |
| 30 | 614010114 | main bearing bolt |
| 31 | 612600010990 | camshaft bushing |
