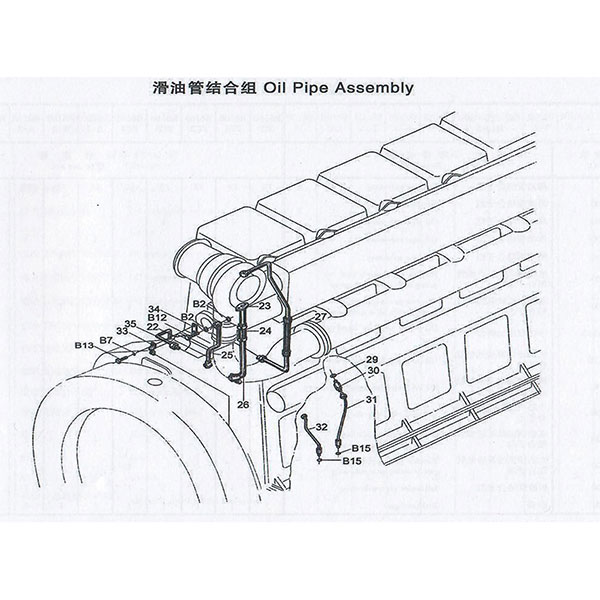

WEI CHAI OIL PIPE ASSEMBLY
We supply varieties of spare parts for WEICHAI series diesel engine.
Weichai Ricardo/Deutz/Steyr Engine
| Pos | Teile.number | Designation |
| 1 | 160A.22.270 | Oil pipe sub-assy |
| 2 | 616022040500 | Oil pipe sub-assy |
| 2 | 616022030500 | Oil pipe sub-assy |
| 2 | 616022010500 | Oil pipe sub-assy |
| 3 | 616022040200 | Electric pre-supply fuel pump outlet pipe sub-assy |
| 3 | 616022030200 | Electric pre-supply fuel pump outlet pipe sub-assy |
| 3 | R6160ZC.22.230 | Oil outlet pipe for hand pump sub-assy |
| 4 | R6160ZC.22.70 | Oil inletpipe for cooling sub-assy |
| 4 | 616022010700 | Oil inletpipe for cooling sub-assy |
| 5 | 616022040100 | Electric pre-supply fuel pump outlet pipe sub-assy |
| 5 | 616022030100 | Electric pre-supply fuel pump outlet pipe sub-assy |
| 7 | 616022120001 | Oil pipe sub-assy |
| 8 | 90003989301 | Clamp |
| 9 | R6160ZC.22.30 | Oil outlet pipe sub-assy |
| 11 | 616022110100 | Oil pump intake pipe sub-assy |
| 11 | 616022120100 | Oil inlet pipe sub-assy |
| 11 | 616022010100 | Oil inlet pipe sub-assy |
| 11 | 616022020100 | Oil inlet pipe sub-assy |
| 12 | R6160ZC.22.90 | Oil inlet pipe for filter sub-assy |
| 12 | 616022020900 | Oil inlet pipe for filter sub-assy |
| 16 | R6160ZC.22.110 | Oil outlet pipe for filter sub-assy |
| 17 | 160A.22.03 | Turning connection bolt |
| 18 | 160A.22.120 | Oil pipe sub-assy |
| 19 | 160A-2.22.120 | Oil pipe sub-assy |
| 20 | 160A.22.290A | Oil pipe sub-assy |
| 23 | 616022084400 | Oil outlet pipe for turbocharger sub-assy |
| 23 | 616022074400 | Oil outlet pipe for turbocharger sub-assy |
| 23 | 616022064400 | Oil outlet pipe for turbocharger sub-assy |
| 24 | 160A.22.25 | Rubber pipe |
| 25 | 160A.22.260 | Oil pipe sub-assy |
| 26 | 616022067900 | Oil outlet sub-assy |
| 26 | 616022087900 | Oil outlet sub-assy |
| 26 | 616022077900 | Tuebosupet charger lower oil pipe outlet sub-assy |
| 27 | 616022018200 | Oil inlet pipe for turbocharger sub-assy |
| 27 | 616022028200 | Oil inlet pipe for turbocharger sub-assy |
| 27 | 616022118200 | Oil inlet pipe for turbocharger sub-assy |
| 31 | 616022030800 | Camshaft oil inlet pipe |
| 35 | 616022023000 | Oil inlet pipe for fine filter sub-assy |
| 35 | 616022013000 | Oil inlet pipe for turbocharger sub-assy |
| 36 | 616022110300 | Oil perssure for turbocharger sub-assy |
